Tyre Markings - Reading your Tyre Sidewall

The sidewall of a tyre shows lots of information about that particular tyre. Take a look at our helpful tyre codes guide below to find out what the numbers and symbols on your car tyres mean, and how important they are to you as a driver...

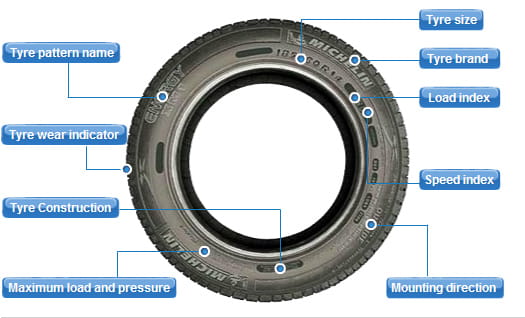

Learn how to read your tyre sidewall
*Image Michelintransport.com

What do the numbers on tyres mean?

Understanding how to check tyre size, what tyre numbers mean and how to read the tyre sidewall markings is important – especially when it comes to replacing your tyres. On a tyre, you can typically find:

Tyre Pattern Name

Each manufacturer has its own range of tyre tread patterns – you’ll find the name of the tyre (aka the tread pattern) on the sidewall, and often the range the tyre has come from, too.

Tyre Wear Indicator

Some manufacturers add tread wear indicators to their tyres. The indicator is set at 1.6mm. When your tyre tread wears and reaches the indicator, legally it’s time to have the tyre replaced.

Tyre Construction

If you are wondering how to identify radial tyres, look at the method of construction identified on the tyre sidewall. Modern tyres are made via the ‘Radial’ method, which has replaced the cross-ply tyre. This means that the cords which construct the tyre run perpendicular to the direction of travel. So if you view the tyre from the side, the cords will run radially.

Maximum Load and Pressure

This indicates the maximum load carrying capacity of the tyre, at the maximum tyre pressure. Check your vehicle handbook for recommended tyre pressures, suitable for everyday driving.

Tyre Brand

The tyre's manufacturer will be identified on the sidewall.

Tyre Size

To understand tyre markings more easily, we’ve broken them down by the tyre size. The size of a tyre is clearly printed on the sidewall and looks something like this... 205/55/R18 105V

This string of numbers indicates the sizes and dimensions of the tyre.

  • 205 is the tyre width in millimetres
  • 55 indicates the tyres sidewall height as a percentage e.g. 55% of the tyre width
  • R identifies that the tyre is of radial construction
  • 18 the wheel rim diameter measured in inches

Load Index

The load index is identified at the end of the tyre size string 205/55/R18 105V – it is the number that appears before the letter. This code indicates the maximum load a tyre can carry. The number relates to the below table – so in this example the tyre can carry 925kg.

Load Index Kilograms Load Index Kilograms Load Index Kilograms
65 290 80 450 95 690
66 300 81 462 96 710
67 307 82 475 97 730
68 315 83 487 98 750
69 325 84 500 99 775
70 335 85 515 100 800
71 345 86 530 101 825
72 355 87 545 102 850
73 365 88 560 103 875
74 375 89 580 104 900
75 387 90 600 105 925
76 400 91 615 106 950
77 412 92 630 107 975
78 425 93 650 108 1000
79 437 94 670

Speed Index

The speed index, is the letter that follows the load index next to the tyre size 205/55/R18 105V

This indicates the maximum speed the tyre can service. The following table identifies the speeds in relation to the Letter.

Speed Symbol Approx MPH
Q 99
R 106
S 112
T 118
H 131
V 149
VR 131
W 168
Y 186
ZR 149

Mounting Direction

On an asymmetric tyre the indicator shows which side of the tyre must face outwards. Directional tyres have markings to show which direction of rotation is required.
